Setra FLEX

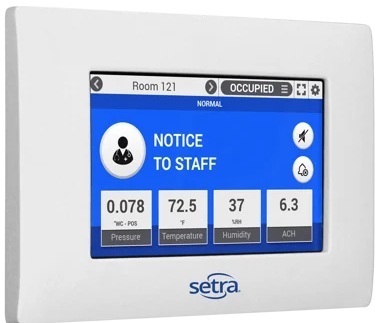

The Setra FLEX™ is a complete monitoring and control solution in a pre-configured and easy-to-use package. Offering all of the essential parameters that require monitoring, FLEX will meet all of your critical environment needs.

GOING BEYOND ROOM PRESSURE
From the pressure experts comes the most accurate and reliable room pressure monitor in the industry _ but that's not all. Now you can monitor and control pressures, temperature, humidity, and air changes per hour; plus, any two additional parameters you may require. Visualize the data by either hard wiring the sensors, or by mapping network objects via BACnet. FLEX is flexible enough to meet any HVAC sensing or control need and customizable enough to monitor energy usage and industrial equipment.

EASY CONFIGURATION
The Setra FLEX comes out-of-the-box ready to configure at the job site. No programming or training is required for setup. Just configure your sensors and network on-site and the FLEX is ready to go. If there are many units to configure, our unique USB cloning feature helps you get them done even faster, saving time and money.

FLEX RM / FLEX RC

FLEX comes in two models, providing both the best price-to-performance as well as the one-of-a-kind feature set to meet the most difficult application needs. Both FLEX models can be controlled over the network via read/write BACnet objects, permitting both local control via the touch screen or control from the BMS.


Specs
• Supports 3 Rooms, 6 Parameters Each
• 7" Projected Capacitive Touch ScreenFlush Mount to Wall
• Mounts in Standard Electrical Boxes
• IP54 Rated for Wash-Down
• Full Touch Response with Medical Gloves
• No Programming Required
• 4 Inputs & 2 Outputs On-board
• On-board or External Pressure Transducer
• High Accuracy 0.25% Sensor Standard
• Monitor and Control Pressure, Temperature, Humidity, Air Change Rate and 2 User Defined Parameters
• 4 Customizable Room Profiles
• 2 Levels of Password Security
• User-defined On-screen Text and Icons
• Configuration Options Help Reduce Nuisance Alarms
• 50mm Wall Depth when Sensor is Mounted Remotely
• Cloning Features Reduces Time Required for Multi-Unit Installation

Models	FLEX-RM, FLEX-RC
Versions	1.3.2
Profile	BACnet Application Specific Controller (B-ASC)
