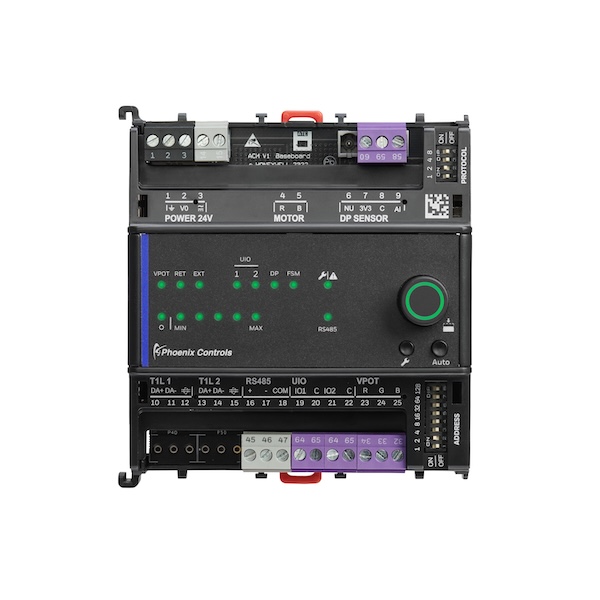

Actuator Control Module (ACM)

The Actuator Control Module (ACM) provides precise control of the linear high-speed actuator on the Phoenix Controls venturi valve within the Critical Spaces Control Platform (CSCP). The ACM is mounted on the Phoenix Controls venturi valve and houses the characterization data of the venturi valve and when commanded (via network or local input) drives the valve to position with one second speed of response from command change. The ACM optionally couples with a differential pressure sensor or differential pressure switch signal to better control dynamic fan static control throughout a facility. The ACM can be used as a standalone network device, analog controller, or when used in conjunction with other Phoenix Venturi valves and the Programmable BACnet controller (PBC) for zone balance, comfort control, occupancy, emergency management, and pressurization control.


ModelsACM500
Versions1.2.1.4
ProfileBACnet Smart Actuator (B-SA)
PICS
BTL ListingBTL Listing Document - Product Listed: September 2025
Certificate
