BTL Listing of Tested Products

Advanced Controller for pump unit | Advanced Controller for chiller unit | Advanced Controller

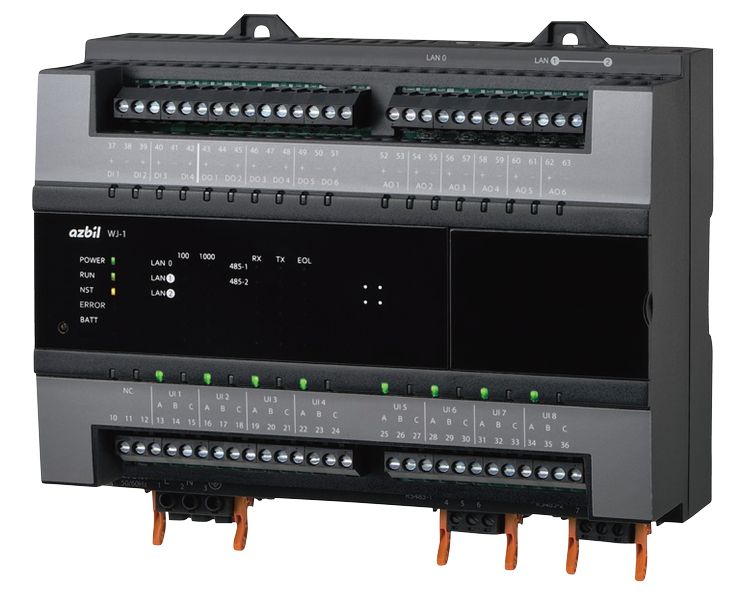

This product (Model WJ-1102P/WJ-1102Q) are controllers that controls the central plant facilities for buildings. It uses I/Os that have been built for the central plant instrumentation along with control application programs to provide optimal control. It can also handle cases where monitoring points, control applications, etc. are added during operation. It is compatible with various open protocols such as BACnet/IP, BACnet MS/TP, Modbus/RTU, Modbus/ASCII.

Models	WJ-1102P1x1x2x3x4Wx5 where x1 is 2,4, or 8 x2 is 3, or 4 x3 is 0,1,3, or 5 x4 is 0,1,2,3 or 4 x5 is null or -U 1.0.2 WJ-1102Qy1y2y3y4y5Wy6 where y1 is 1, or 2 y2 is 2,4, or 8 y3 is 2,3,4, or 6 y4 is 0,1, or 3 y5 is 0,1,2,3, or 4 y6 is null or -U 1.0.2 WJ-1103W0000, WJ-1103W0000-U
Versions	1.0.2
Profile	BACnet Building Controller (B-BC)
PICS
BTL Listing
Certificate
