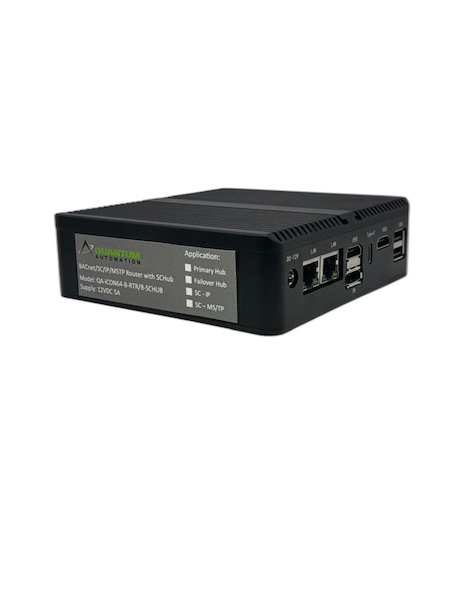

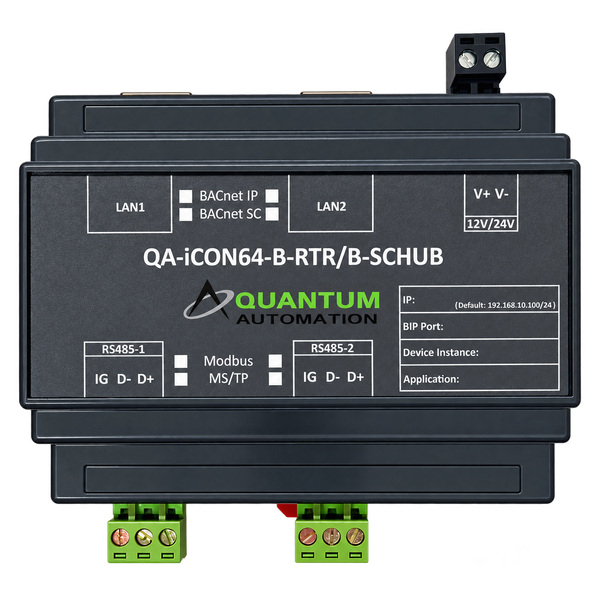

QA-iCON64-B-RTR/B-SCHUB

The QA-iCON64-B-RTR/B-SCHUB integrates conventional BACnet BAS networks with BACnet Secure Connect (BACnet/SC) networks. It also comes with a built-in BACnet/SC Hub, capable of handling secure connections from up to 200 BACnet/SC nodes. When the device is configured to be Hub Only mode, it (the SC hub) will be able to handle up to 400 secure connections from BACnet/SC nodes. The built-in web server of QA-iCON64-B-RTR/B-SCHUB greatly simplifies the device configuration tasks, such as generating Certificate Signing Request (CSR) files, application of Operational and Issuer Certificates, upgrading firmware, setting communication parameters, etc. It also provides a number of log files and a built-in Wireshark capturing facility, which is accessible through the web interface for troubleshooting purposes. Quantum also provides an IP-to-SC Software Router for downloading application programs and configuration files to QA non-secure IP and MS/TP devices via a secure-connect network.


ModelsApplication Software Version: 1.0
Firmware Revision: 1.08.00
Versions
ProfileBACnet Secure Connect Hub (B-SCHUB)
PICS
BTL ListingBTL Listing Document - Product Listed: October 2024
Certificate
