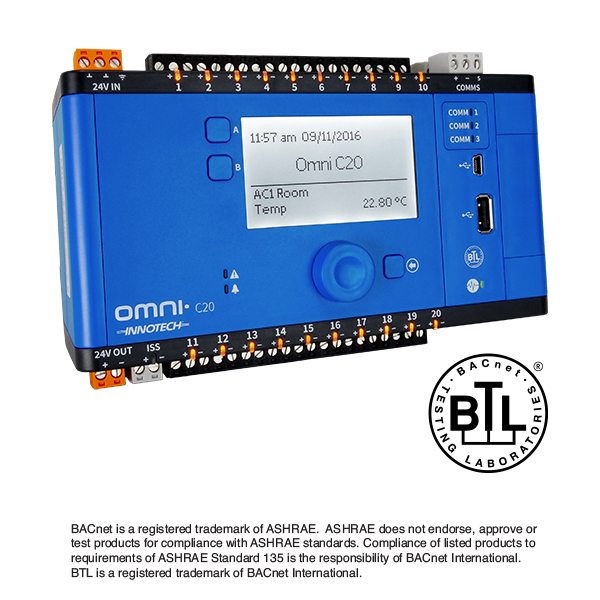

 | Omni BEMS Controller
The Innotech Omni generation of BEMS Controllers are state of the art digital processing systems suitable for various types of control applications typically found in building management and process control.
An innovative feature of the Omni range is that the Programmable Points (UI/O) can be used universally as inputs or outputs. High speed data processing technology, customizable multi-protocol communication interfaces, combined with a fully user configurable input/output interface for field device connectivity allows for out-of- the-box project flexibility.
Each Omni controller supports various industry standard protocols with enhanced capabilities including routing between networks and protocols. Additional protocol and communications interfaces are supported via Omni Expansion Bay Modules.
Each controller has a feature rich embedded webpage providing user-level controlled access to the device system configuration including, real time monitoring and trending, graphing, diagnostics, alarm status, log extraction and scheduling functions.
The optional Human Machine Interface (HMI) can be ordered with the Omni BEMS Controller or used externally via various mediums. The HMI is customizable during the configuration process and can display relevant live information as well as providing access to system settings.
Easily accessible USB ports offer a fast, localized configuration interface and access to logged data. Omni controllers are fully programmable via the Innotech Focus graphical programming interface.
Models | OMC14, OMC14-Q, OMC14-AGIQ,
OMC14D, OMC14D-Q, OMC14D-AGIQ,
OMC20, OMC20-Q, OMC20-AGIQ,
OMC20D, OMC20D-Q, OMC20D-AGIQ,
OMC40, OMC40-Q, OMC40-AGIQ,
OMC40D, OMC40D-Q, OMC40D-AGIQ,
OMC10, OMC10-Q, OMC10-AGIQ,
OMC8, OMC8-Q, OMC10V,
OMC10V-Q, OMC8V, OMC8V-Q |
Versions | 7.4.d.7 |
Profile | BACnet Building Controller (B-BC)
| PICS |  | BTL Listing |  | Certificate |  | |
