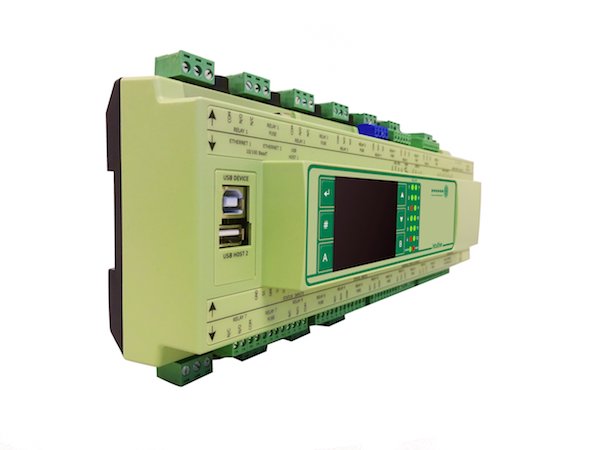

RDM Intuitive Range of Plant Controllers

The RDM Intuitive range of plant controllers are designed to provide a flexible solution for delivering stable, responsive and energy efficient control without any complicated programming or setup. They are versatile devices intended for use in a number of varying applications used to control and monitor a range of equipment and ancillaries. The devices offer a variety of inputs and outputs, some of which include; Digital inputs, Relay Outputs, mA or Voltage Inputs/Outputs; Stepper Outputs, Resistive Analogue Inputs and PWM control. The types of application the device can be applied include Refrigeration, BEMS, HVAC, Lighting and with the TDB enabled variant a PLC strategy designed by the user to allow any application to be achieved. The Intuitive Range has been developed to address every control scenario and can be configured in an infinite number of ways to suit the user’s requirements.


ModelsPR06x1x2x3x4x5x6
where
x1 is 1,5 or 8
x2 is 0,2 or 7
x3 is blank, D, CD, TDB
x4 is blank, NF, E or F
x5 is BITZIQ, CCT, PACK, STCO2, SUP, TDB, BK or WH
x6 is E1, E2, E3, E4, E5, E6, E7, E8, E9, E10, E11 or E12
Versions2.1.7
ProfileBACnet Application Specific Controller (B-ASC)
PICS
BTL ListingBTL Listing Document - Product Listed: September 2018
Certificate
