Success Stories

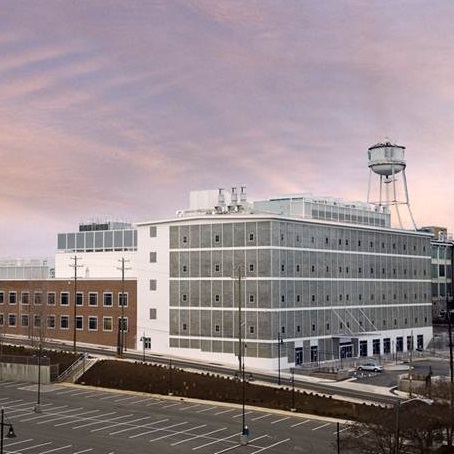

Wake Forest Biotech Place
Winston-Salem, NC, United States
Mixed Use Mixed Use
Completed: 2012

Winston-Salem, NC - Wake Forest University, Various Tenants


The project included three five-story buildings, representing 242,000sq ft.

The project involved converting a historical warehouse and machine repair facility, and retrofitting into labs and office spaces.

The project included the use of the Web-based EC-Net-AX platform for HVAC control, direct integration into mechanical and electrical equipment, energy monitoring and a reporting dashboard.
Controllers installed were ECB Series BACnet programmable controllers.

The system was engineered and installed to support the building's anticipated LEED Gold Certification and achieved 31.5 percent in energy costs savings over ASHRAE/IES Standard 90.1-2007.

The facility was up fitted to National Park Service standards for preserving historical buildings.

Number of Buildings: 3 Total Area: 242,000

Special Features:
This project included chilled beam applications, and was featured in the ASHRAE Journal.

Products / Equipment Installed: Systems Integrated:
Distech Controls EC-Net-AX Supervisor
Distech Controls EC-BOS
Distech Controls ECB Series Controllers
Boiler, Chiller, HVAC, Laboratory, Power Monitoring, VAV

Number of Devices: 750 System Points: 7,500

System Integrator: Envirotrol

Controls Contractor: Envirotrol

BACnet Manufacturers: Distech Controls, Inc.
