Success Stories

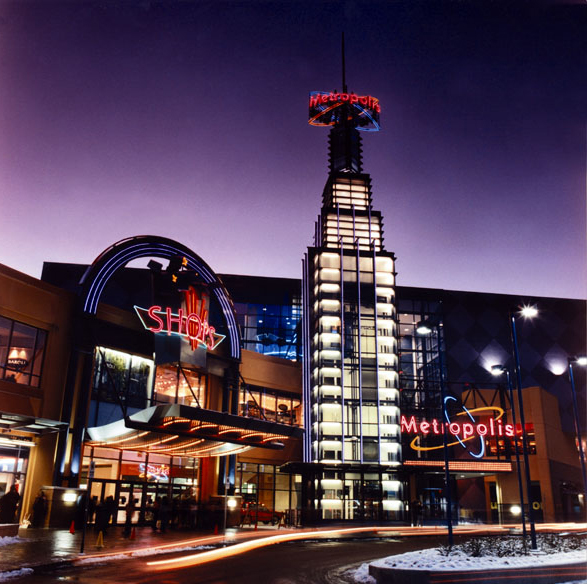

Metropolis at Metrotown
Vancouver, BC, Canada
Mixed Use Mixed Use
Completed: 2006

Vancouver, BC - Ivanhoe Cambridge


The Reliable Controls® MACH-System installed at Metrotown controls the HVAC in twin 30-storey office towers, exhaust systems for a one million square foot parkade, controls four boiler plants and six chiller plants, and dozens of rooftop units serving the mall, walkways, and administration areas. Each tenant retail space is heated and cooled with fan coils. A BACnet® connection is employed to communicate with three McQuay chillers and eight Rooftop Units. The Reliable Controls® MACH-System installed at Metrotown is monitored and controlled from eight onsite operator workstations that run RC-Studio® 2.0. Remote browser access using using RC-WebView™ 2.0 provides robust and secure thin-client communications to the Metrotown environment.

Number of Buildings: 4 Total Area: 1.7 million

Products / Equipment Installed: Systems Integrated:
1 Reliable Controls ETHER-Link BACnet Building Controller
3 Reliable Controls MACH-Global BACnet Building Controllers
4 Reliable Controls MACH-Net Controllers
22 Reliable Controls MACH2 BACnet Building Controllers
65 Reliable Controls MACH1 BACnet Building Controllers
HVAC

Number of Devices: 95 System Points: 2200

Controls Contractor: Control Solutions Ltd.

BACnet Manufacturers: Reliable Controls, DAIKIN Industries
